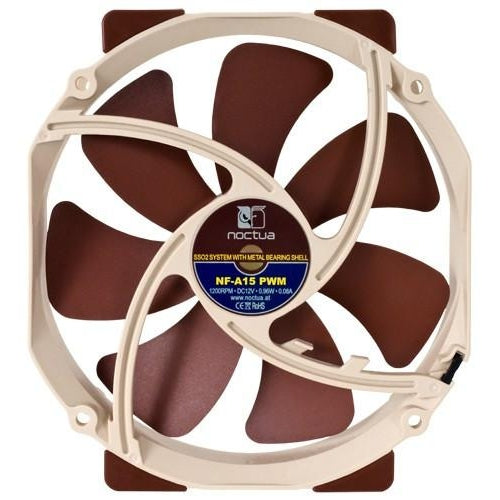

Noctua 140x150x25mm Premium Fan NF-A15
840556101109
Ideal for 140mm CPU Coolers
The NF-A15 is a premium quality quiet 140mm fan with a round frame that complies with Noctuas AAO (Advanced Acoustic Optimisation) standard. The NF-A15s frame features 120mm mounting holes (105mm spacing) and has been enlarged to 150mm width in order to provide superior performance on todays high-end CPU coolers. Featuring sophisticated aerodynamic design measures such as Flow Acceleration Channels, the NF-A15 further improves the renowned quiet cooling performance of the award-winning NF-P14. Noctuas custom designed PWM IC for fully automatic speed control and reference class SSO2 bearings guarantee superb running smoothness and excellent long-term stability. Topped off with modular cabling, a Low-Noise Adaptor and 6 years manufacturers warranty, the NF-A15 is a premium choice for the highest demands.
Succeeding the award-winning NF-P14
Noctuas NF-P14 fan has become a default-choice among PC enthusiasts looking for a premium quality quiet 140mm fan. Thanks to its thoroughgoing aerodynamic optimisations, the NF-A15/14 provides higher static pressure and an even better airflow/noise ratio than its much acclaimed predecessor.
NF-A15 Round 140mm frame with 150mm width
The NF-A15 is tailor-made for use on todays high-end CPU coolers: While its 150mm width matches those of most high-end heatsinks, its 140mm height doesnt make it extend on top and thus ensures best case compatibility. The NF-A15s standard 120mm mounting holes (105mm spacing) also make it an ideal performance upgrade for 120mm case or CPU fans.
button
NF-A15 Flow Acceleration Channels
The NF-A15 impeller features suction side Flow Acceleration Channels. By speeding up the airflow at the crucial outer blade regions, this measure reduces suction side flow separation and thus leads to better efficiency and lower vortex noise. button
NF-A15 AAO Frame
Noctuas AAO (Advanced Acoustic Optimisation) frames feature integrated anti-vibration pads as well as Noctuas proprietary Stepped Inlet Design and Inner Surface Microstructures, both of which further refine the fans performance/noise efficiency. button
Stepped Inlet Design Stepped Inlet Design
Noctuas Stepped Inlet Design adds turbulence to the influx in order to facilitate the transition from laminar flow to turbulent flow, which reduces tonal intake noise, improves flow attachment and increases suction capacity, especially in space restricted environments. button
Inner Surface Microstructures Inner Surface Microstructures
With the tips of the fan blades ploughing through the boundary layer created by the Inner Surface Microstructures, flow separation from the suction side of the blades is significantly suppressed, which results in reduced blade passing noise and improved airflow and pressure efficiency. button
Integrated Anti-Vibration Integrated Anti-Vibration Pads
Integrated Anti-Vibration Pads made from extra-soft silicone minimise the transmission of minute vibrations while maintaining full compatibility with all standard screws and other mounting systems.
SSO2 SSO2 Bearing
The NF-A15 features the further optimised second generation of Noctuas renowned, time-tested SSO bearing. With SSO2, the rear magnet is placed closer to the axis to provide even better stabilisation, precision and durability. button
Metal Bearing Shell Metal bearing shell
In order to guarantee the highest possible degree of manufacturing precision, minimum tolerance and excellent long-term stability, the NF-A15 sports a CNC milled bearing shell made entirely from brass. button
PWM Custom designed PWM IC with SCD
Supporting fully automatic PWM speed control, the NF-A15 PWM uses Noctuas novel, custom designed NE-FD1 PWM IC that integrates Smooth Commutation Drive (SCD) technology. By providing smoother torque impulses, SCD suppresses PWM switching noises and thus makes the fan quieter at low speeds. button
LNA Low-Noise Adaptor
The NF-A15 PWM is supplied with a Low-Noise Adaptor (L.N.A.) that reduces the maximum fan speed from 1200 to 900rpm. The L.N.A can be used either to run the fan at a fixed speed of 900rpm or to cap the maximum speed when using automatic PWM control.
Cabling Options Extensive cabling options
The fans short 20cm primary cable minimises cable clutter in typical applications while the supplied 30cm extension provides extended reach when necessary. Both cables are fully sleeved and a 4-pin y-cable allows to connect a second NF-A15 PWM fan to the same PWM fan header for automatic control.
Low Power Consumption Ultra-Low Power Consumption
Despite of its further improved performance, the NF-A15 PWM consumes only 0.96W of power, which amounts to a reduction of about 20% as compared to its predecessor. This doesnt only make it eco-friendly but also helps to cut down the electricity bill!
Warranty 6 years manufacturers warranty
Noctua fans are renowned for their impeccable quality and outstanding longevity. Like all Noctua fans, the NF-A15 features an MTBF of more than 150.000 hours rating and comes with a full 6 years manufacturers warranty.
FEATURES:
Blade Geometry A-Series with Flow Acceleration Channels
Frame Technology AAO (Advanced Acoustic Optimisation)
Rotational Speed with L.N.A. (+/- 10%) 1200 RPM
Acoustical Noise with L.N.A. 19,2 dB(A)
Airflow with L.N.A. 115,5 m³/h
Static Pressure 2,08 mm H2O
Static Pressure with L.N.A. 1,51 mm H2O
Max. Input Power 1,56 W
Max. Input Current 0,13 A
PRODUCT SPECIFICATION:
DC Fan Size: 120x120x25mm
Bearing Type: SS02
Fan Speed: 1200 RPM
Noise Level: 19.2 DBA
Rated Voltage: 12 Volt
Max Airflow: 115,5 m³/h
Connector: 4 Pin PWM
ACCESSORIES:
Low-Noise Adaptor (L.N.A.)
4-Pin Y-Cable
30cm Extension Cable
4 Vibration-Compensators
4 Fan Screws
